SS27 Jupiter 15W-30W Spilt Solar Street Light of All In Two Solar Street Light


  • Model Jupiter SS27
  • LED Wattge 15W/20W/30W
  • Lumen Efficiency 110lm/W
  • Solar Panel 50W/60W/80W/
  • Battery LIFEPO4 12V/20AH/30AH/40AH
  • Material Aluminum Die-casting+PC cover
  • Finish Grey
  • Working Plan For two rainy days(can be customized)
  • Product Detail

    Product Tags

     Focus On Lighting Production and Lighting Solution For More Than 10 Years.

    We Are Your Best Lighting Partner!

    VIDEO OF ALL IN TWO SOLAR STREET LIGHT

    DESCRIPTION OF CHINA SOLAR STREET LIGHT

    pro (1)



    Features
    IP66 rated, appicable for all kinds for outdoor use.
    High quality die-casting aluminum lamp body, light weight, good heat dissipation performance
    The solar streetlight is using  LifePo4 Battery with over 3000cycles. The battery capacity is sustainable for lasting 2 or 3 rainy days
    Reasonable structure design, elegant apperance
    This all in one solar streetlight is using monocrystalline silion, with 19.5%  high efficiency solar panel, which can ensure the charging efficiency.

    INSTRUCTION  FOR  CHINA SOLAR STREET LIGHT

    Working Lighting Mode






    Work for over 10 hours per night
    This all in one solar streetlight working mode is based on two contant rainy days
    You also can send us for customized working plan.

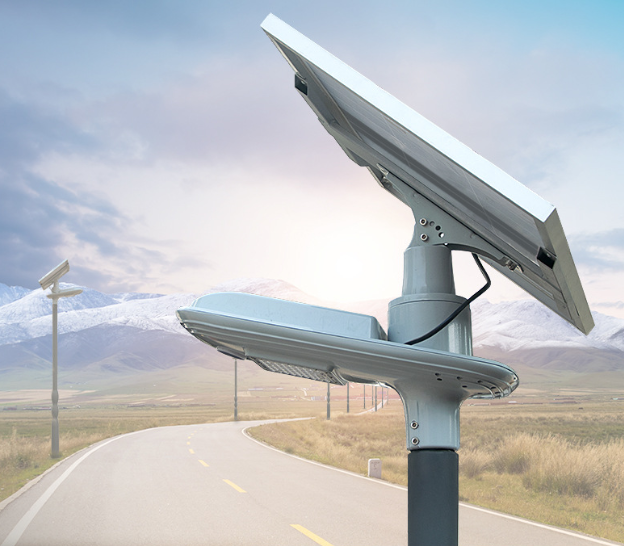

     solar street lamps

    Working mode can be adjusted according to client's demands.

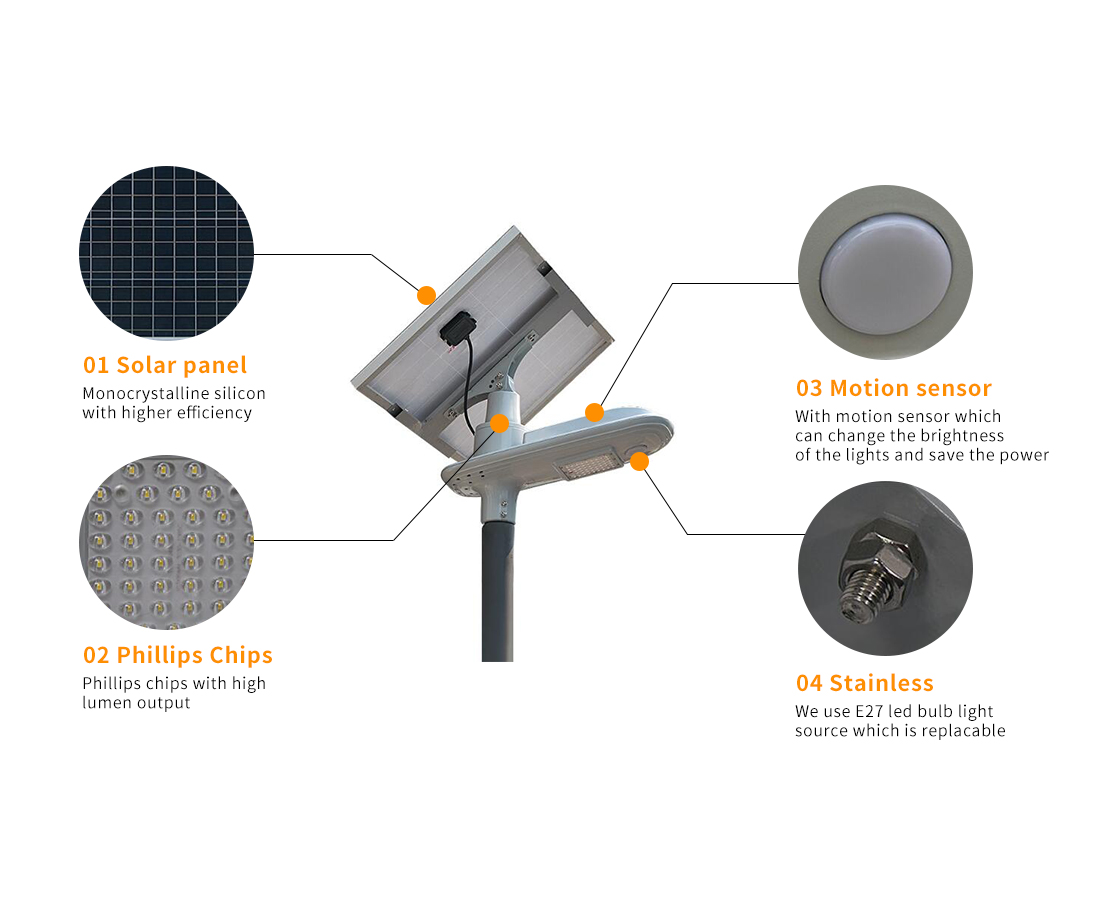

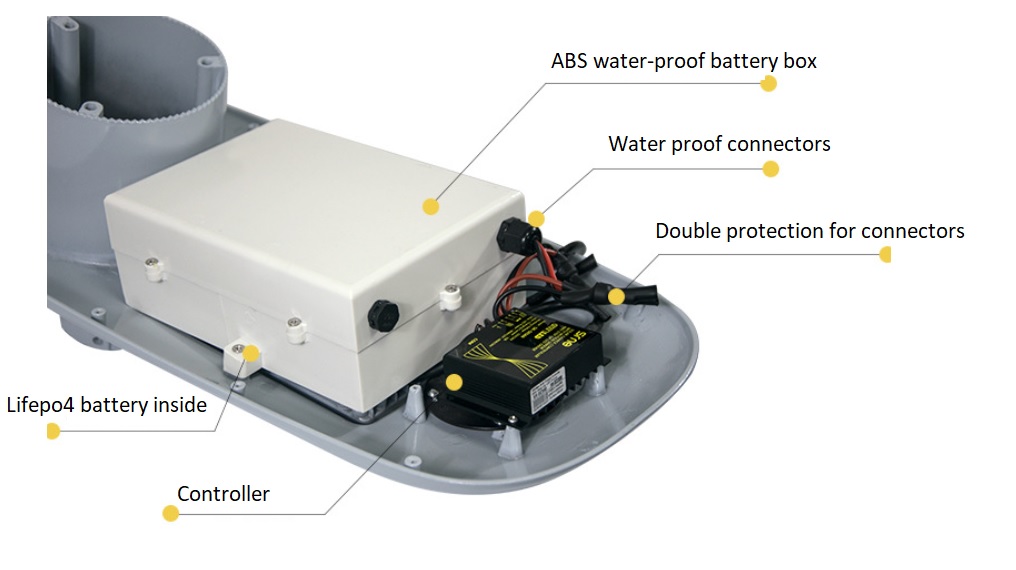

    PRODUCT DETAILS OF ALL IN TWO SOLAR STREET LIGHT

    SS27

    DISTRIBUTIONS CURVES OF ALL IN ONE SOLAR STREETLIGHT

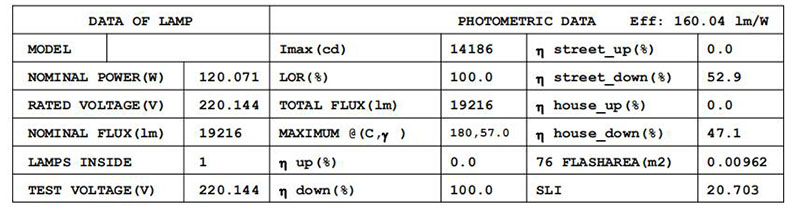

    Test Report pro (6)

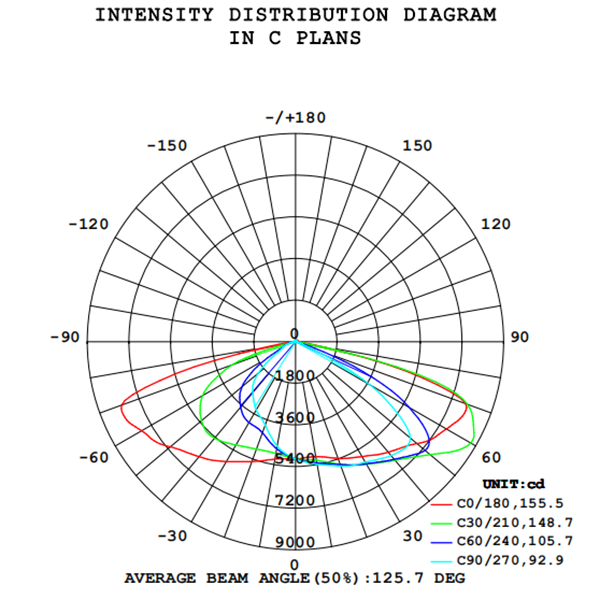

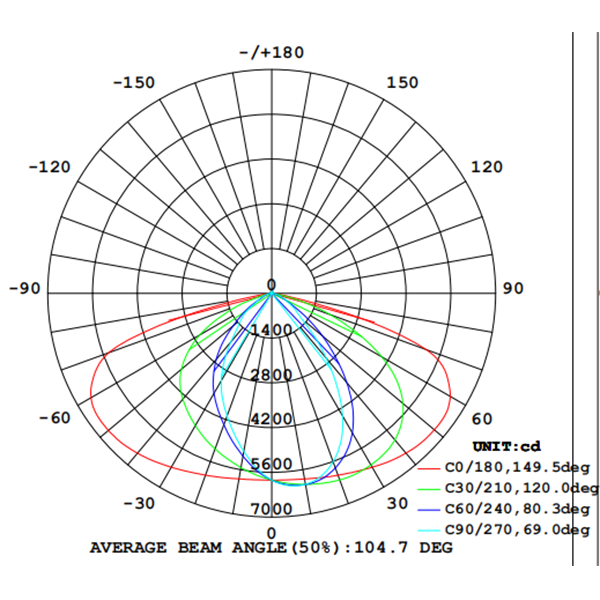

    Distributions Curves TYPE II SHORT TYPE III MEDIUM
    pro (2) pro (3)

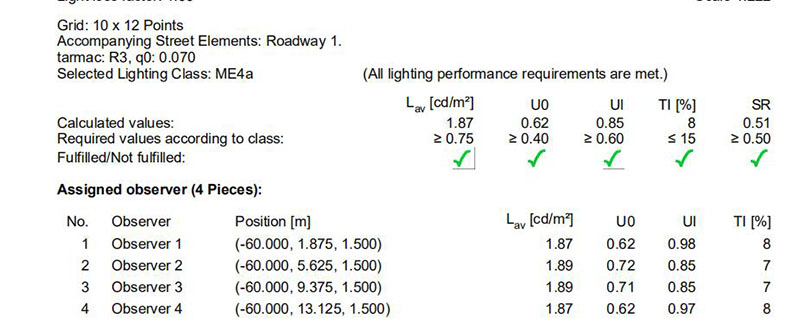

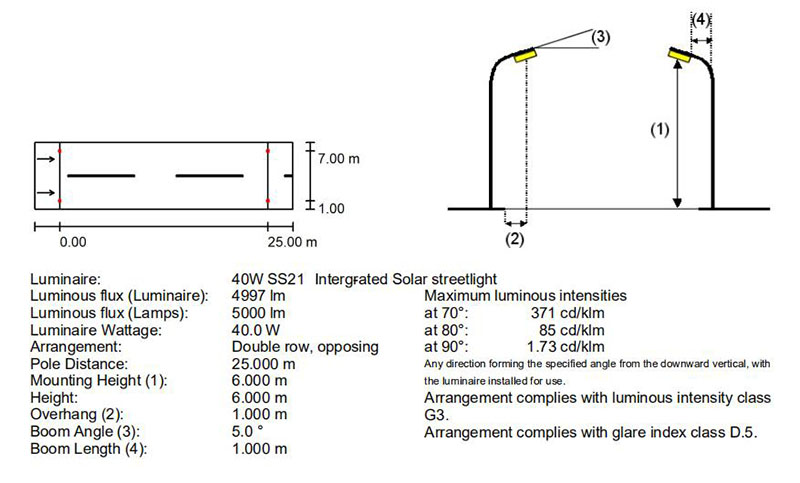

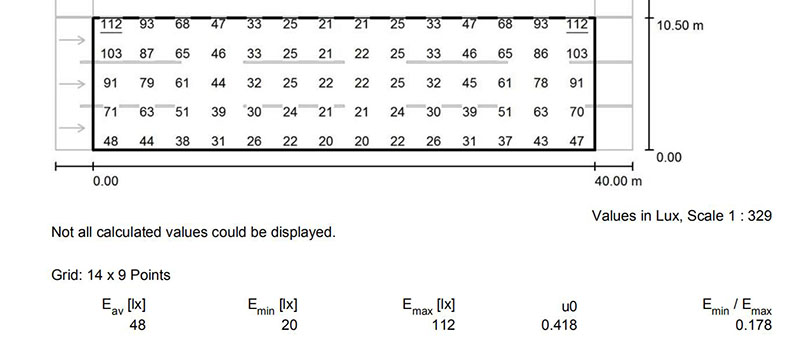

    Simulation of 6M pole 40W Integrated Solar Streetlight pro (7)pro (8)pro (9)



    SPECIFCATION FOR  CHINA FOR ALL IN ONE SOLAR STREET LIGHT

    Picture pro (10)
    Model  SS27 Jupiter-15W SS27 Jupiter-20W SS27 Jupiter-30W
    Led Chips  Phillips Phillips Phillips
    Wattage  15W 20W 30W
    Lumen Output 2200LM 3600LM 4400LM
    Control SRNE controller SRNE controller SRNE controller
    Solar Panel 50W 60W 80W
    Battery Capacity 12V,20AH 12V,30AH 12V,40AH
    Battery Lifetime Lifepo4, 3000cycles Lifepo4, 3000cycles Lifepo4, 3000cycles
    Installing Height 6M 6M 7-8M
    MOQ 10pcs 10pcs 10pcs

     Easy Installation
    It is an enviromentally creative product of energy saving integrated solar street lights.
    With this new design, it is easy installation, it could be installed by untrained workers within 5 minutes

    Better performance
    Compared to the solar lights with lead acid battery luminaries, this one is long lasting and work for longer time.
    It uses 3030 light source with high lumen output, and glue filling techniquefor lens. The luminous efficiency is up to 140lm/W which is increased by more than 30% compared with existing module.
    Built-in grade A powerful lithium ion battery, the battery cell is strictly sorted. Deviation between cells is lower than 4mΩ+5mV. Strict grouping promises consistency of internal resistance, and high efficiency of charging and discharging rate which is almost 99%.
    Good heat radiation aluminum is used for external protection battery box; protection grade is IP67, guarantees working life over 8 years.
    High quality spraying is adopted on surface treatment, which is better on adhesive force, corrosion resistance and aging resistant than painting, which can make the products  stable at least for more than 10 years.

    Good Warranty Terms
    If our producst have met a problem, and we will provide product or spare parts replacement based on the warranty Terms.
    However, circumstances below are not in warranty range:
    Product are amaged during transportation, or malfunction caused by incorrect operation method of customer.
    Operation violate to the setting condition, method of application and notes recorded in instruction
    Malfunction caused by fire, earthquake, flood, typhoon or other natural disaster.

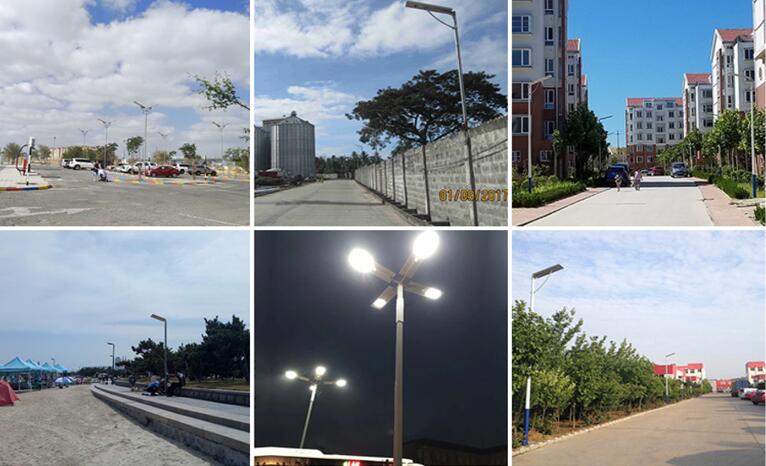

    APPLICATION FOR  ALL IN ONE SOLAR STREETLIGHT

    kljhgf

    ORDER PROCESS

    Order Process-1

    PRODUCTION PROCESS

    Production Process3

    FAQ

    1. Is sample availabe for test?
    Yes, we are accepting the sample orders for your testing.

    2. What is the MOQ ?
    The MOQ for this pathway light is 50pcs for both single color and RGBW(full color)

    3. What is the delivery time?
    The delivery time is 7-15 days after getting the deposit payment.

    4. Do you provide OEM service?
    Yes, Amber believes the fastest and the most efficient way is to cooperate with all greatest customers based OEM business. OEM are welcomed.

    5. What if i want to print my own color box?
    The MOQ of the colored box is 1000pcs, so if your order qty is less than 1000pcs, we will charge a extra cost 350usd to make color boxes with your brand.
    But if in the future, your total ordering qty has reached 1000pcs, we will refund 350usd to you.
